OM Series Large Capacity Flow Meters
-

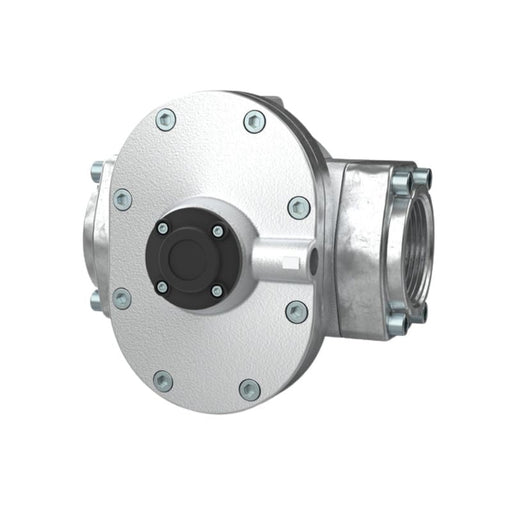

OM Series Flow Meter Pulse Out | 3" - 4" (35 L/min - 2500 L/min)
Original price ₱189,600.00 - Original price ₱464,300.00Original price₱189,600.00 - ₱464,300.00₱189,600.00 - ₱464,300.00Current price ₱189,600.00In stockIntroducing the Large Capacity OM Series Flow Meter Pulse Out – a rugged and reliable solution designed for precision liquid measurement in diverse...
View full detailsOriginal price ₱189,600.00 - Original price ₱464,300.00Original price₱189,600.00 - ₱464,300.00₱189,600.00 - ₱464,300.00Current price ₱189,600.00 -

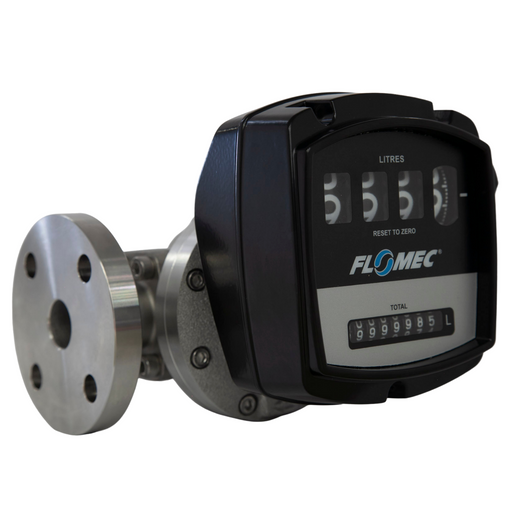

OM Series Flow Meter with Mechanical Display | 3" - 4" (35 L/min - 1500 L/min)
Original price ₱198,200.00 - Original price ₱327,300.00Original price₱198,200.00 - ₱327,300.00₱198,200.00 - ₱327,300.00Current price ₱198,200.00In stockThe FLOMEC® Large Capacity OM Series Mechanical Meters excel at accurately measuring fuels and lubricants, ensuring reliable performance with clean...
View full detailsOriginal price ₱198,200.00 - Original price ₱327,300.00Original price₱198,200.00 - ₱327,300.00₱198,200.00 - ₱327,300.00Current price ₱198,200.00 -

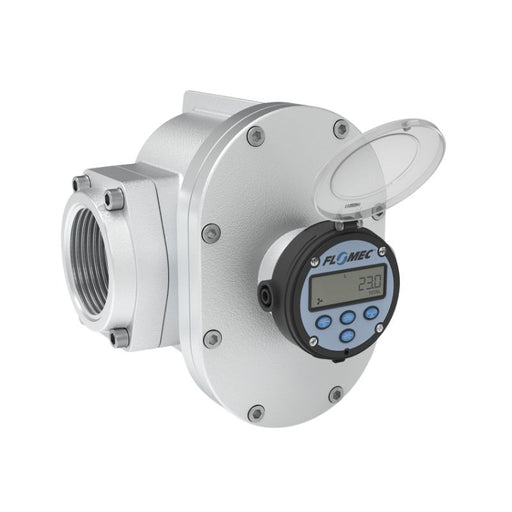

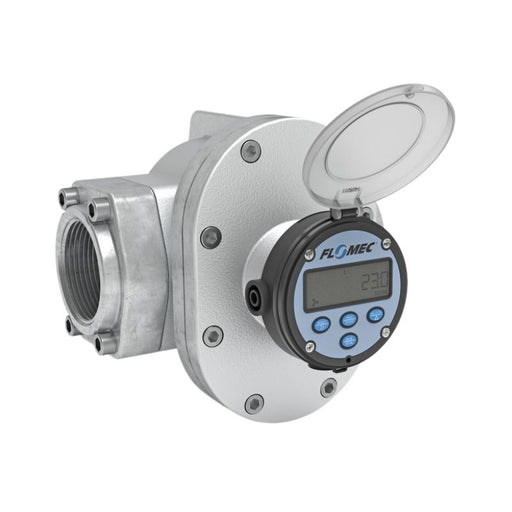

OM Series Flow Meter with Display | 3" - 4" (35 L/min - 2500 L/min)
Original price ₱211,200.00 - Original price ₱494,700.00Original price₱211,200.00 - ₱494,700.00₱211,200.00 - ₱494,700.00Current price ₱211,200.00In stockIntroducing the Large Capacity OM Series Flow Meter with Display—a rugged and reliable solution designed for precision liquid measurement in divers...
View full detailsOriginal price ₱211,200.00 - Original price ₱494,700.00Original price₱211,200.00 - ₱494,700.00₱211,200.00 - ₱494,700.00Current price ₱211,200.00 -

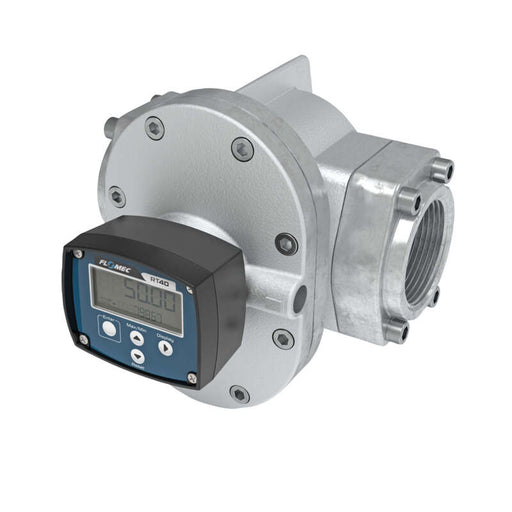

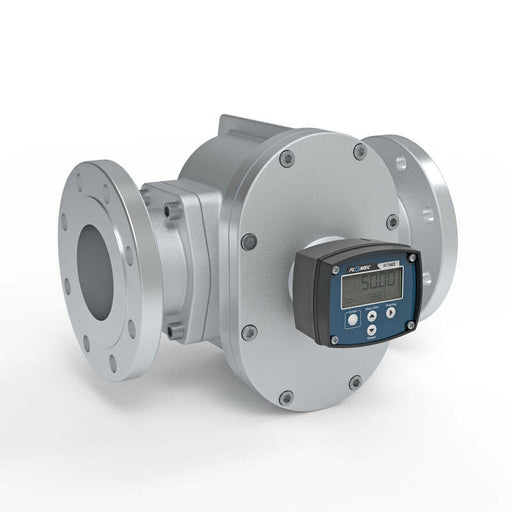

OM Series Flow Meter with Display and Outputs | 3" - 4" (35 L/min - 2500 L/min)
Original price ₱229,100.00 - Original price ₱503,800.00Original price₱229,100.00 - ₱503,800.00₱229,100.00 - ₱503,800.00Current price ₱229,100.00Manufactured Item - Typical Lead Time 5 daysIntroducing the Large Capacity OM Series Flow Meter with Display—a rugged and reliable solution designed for precision liquid measurement in divers...
View full detailsOriginal price ₱229,100.00 - Original price ₱503,800.00Original price₱229,100.00 - ₱503,800.00₱229,100.00 - ₱503,800.00Current price ₱229,100.00
OM Series Large Capacity Flow Meter
Description
The FLOMEC® Large Capacity OM-Series Oval Gear meters are well suited to precise measurement of fuels, oils, solvents, alcohols, mildly aggressive chemicals, and various other clean industrial liquids. Flow rates from 35L/min to 2500L/min, combined with low pressure drop, weights and measures (A/NZ only) and various hazardous area certifications make the large capacity OM-Series meters well suited to almost any liquid transfer or application whether pumped or gravity-fed.
A variety of materials for the body, rotors, seals, process connections and integral options allow for an extremely versatile application range.
Features
- Flows from 35L/min – 2500L/min with Pulse-Out or LCD display
- Sizes 3” – 4” (75mm-100mm) Pipe Sizes
- High accuracy and repeatability, direct volumetric reading
- Measures high and low viscosity liquids
- No requirement for flow conditioning (straight pipe runs)
- Stainless Steel rotors (Optional PPS rotor for OM008 meter only)
- Quadrature pulse output option and bi-directional flow
- Optional Exd I/IIB approval (ATEX, IECEx)
- Only two moving parts (Average 5 year use)
- Factory calibrated (not field calibratable)
Applications
- Diesel fuel
- Petrol (gasoline) with or without ethanol content
- Biofuels
- Kerosene
- Glycols / Anti-Freeze
- Diesel Exhaust Fluid (DEF / Adblue)
- Lubricating oils and greases
- Edible oils
- Solvents
- Resins and adhesives
- Fertilizers, herbicides, insecticides
Use the filters to configure the meter to your required specifications.
